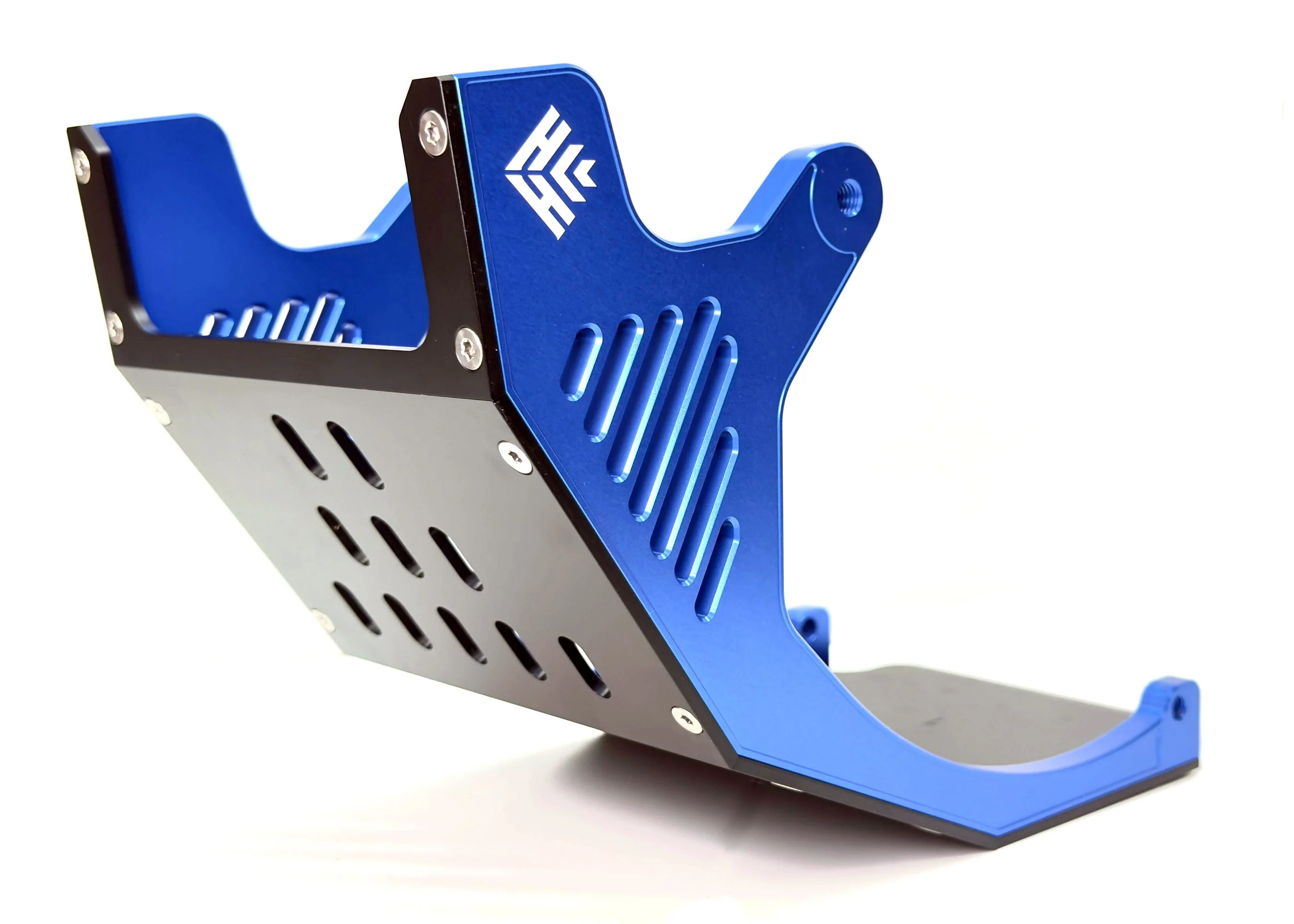

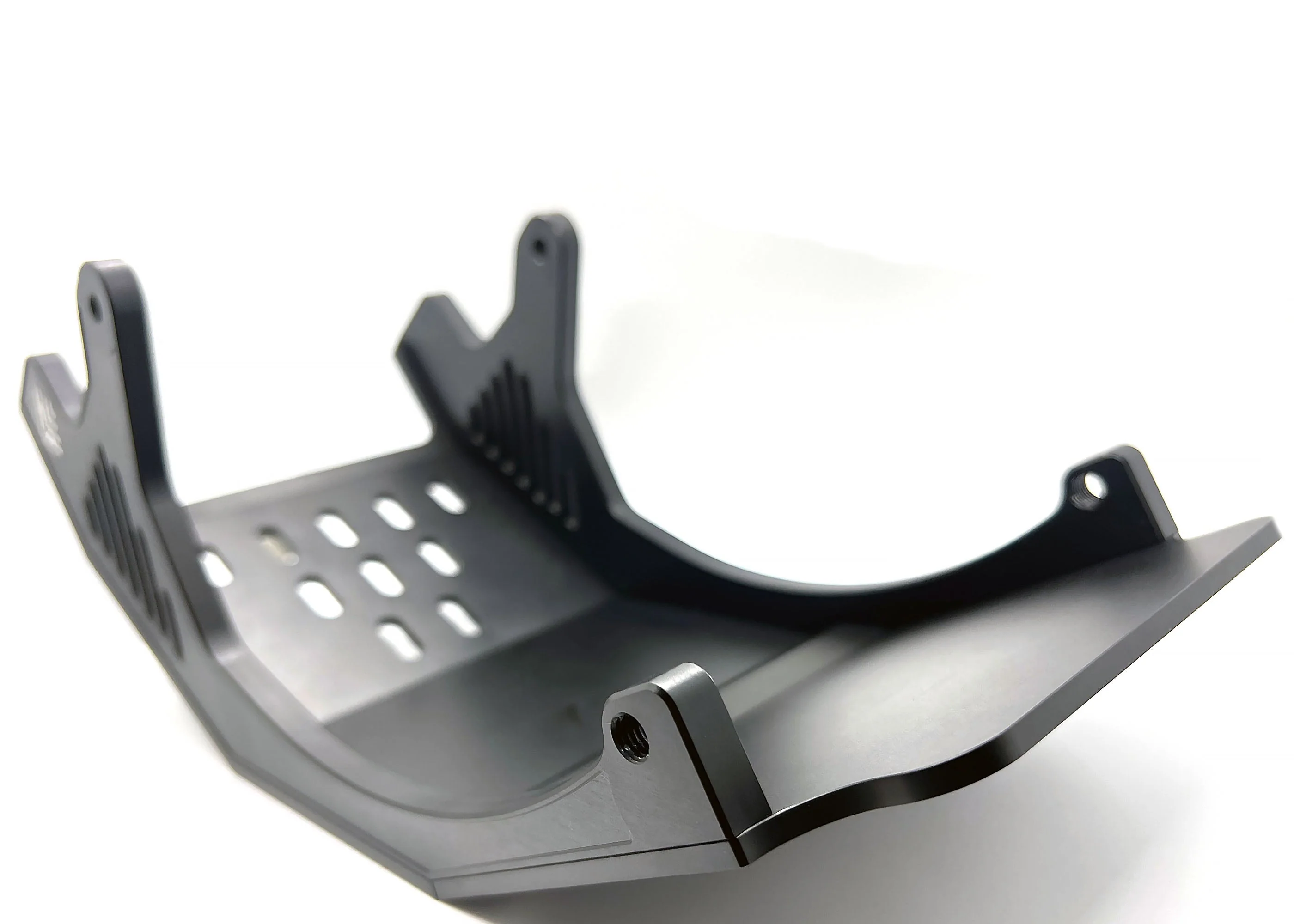

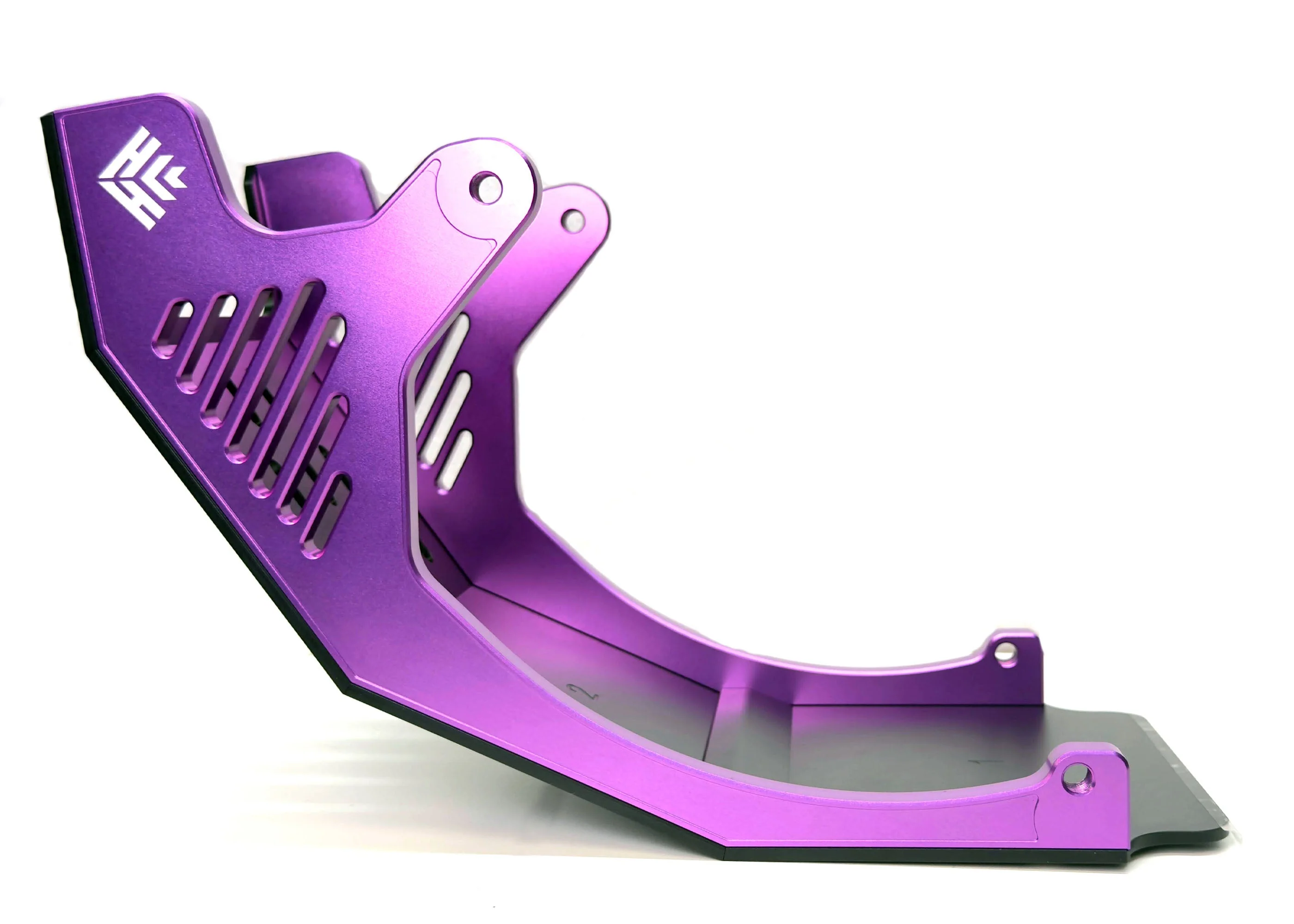

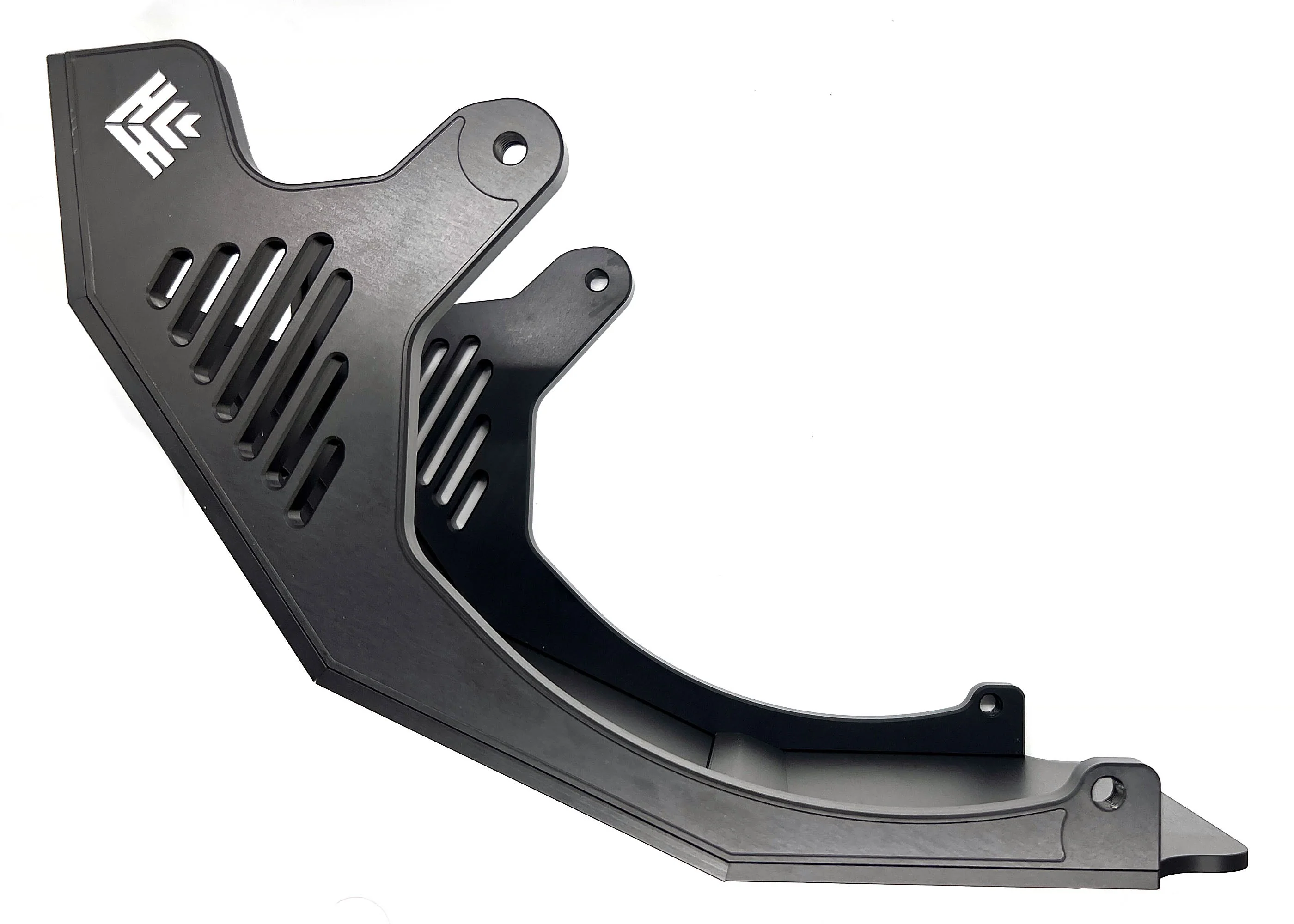

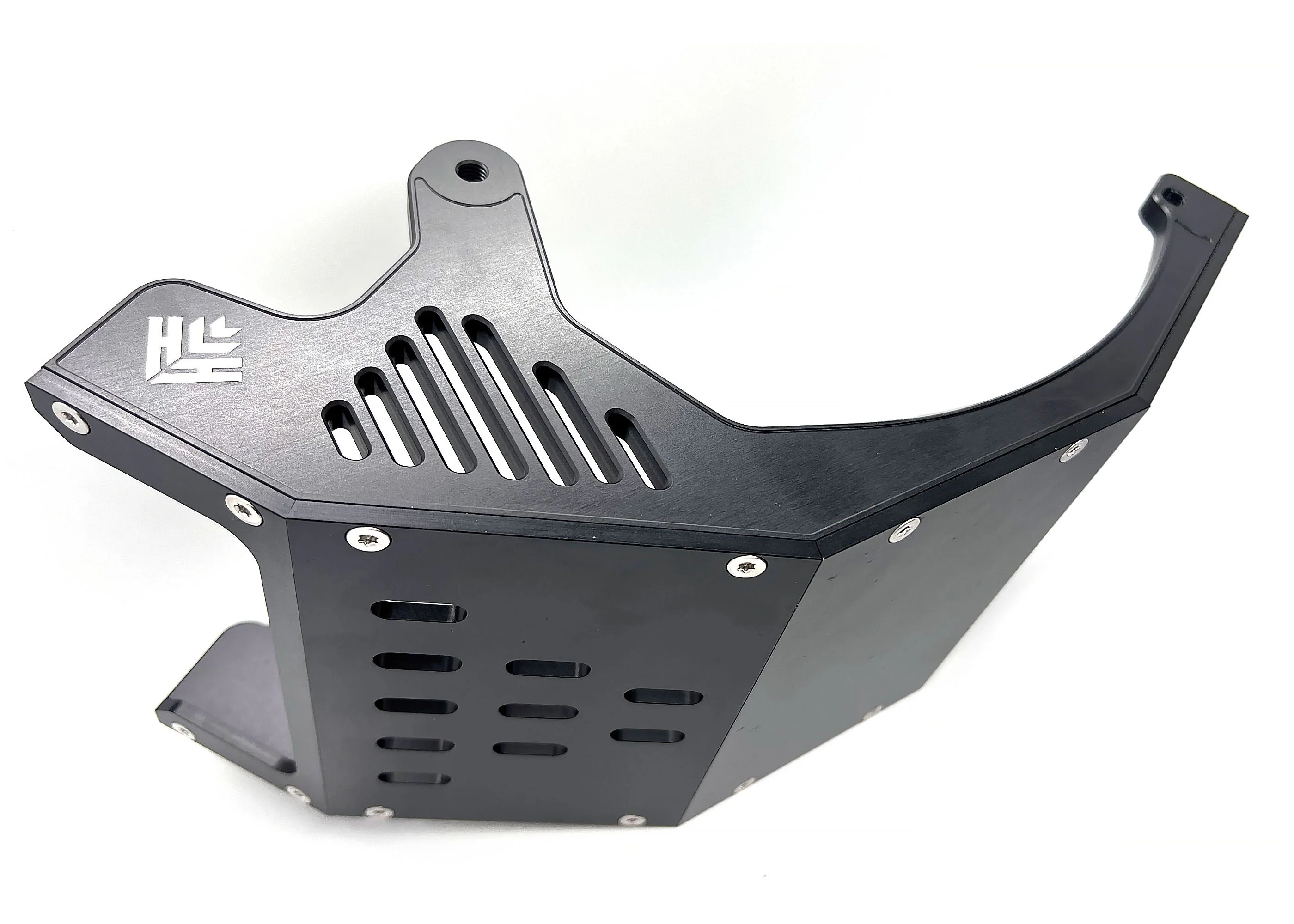

Heavy Hitter E-Ride Skid Plate

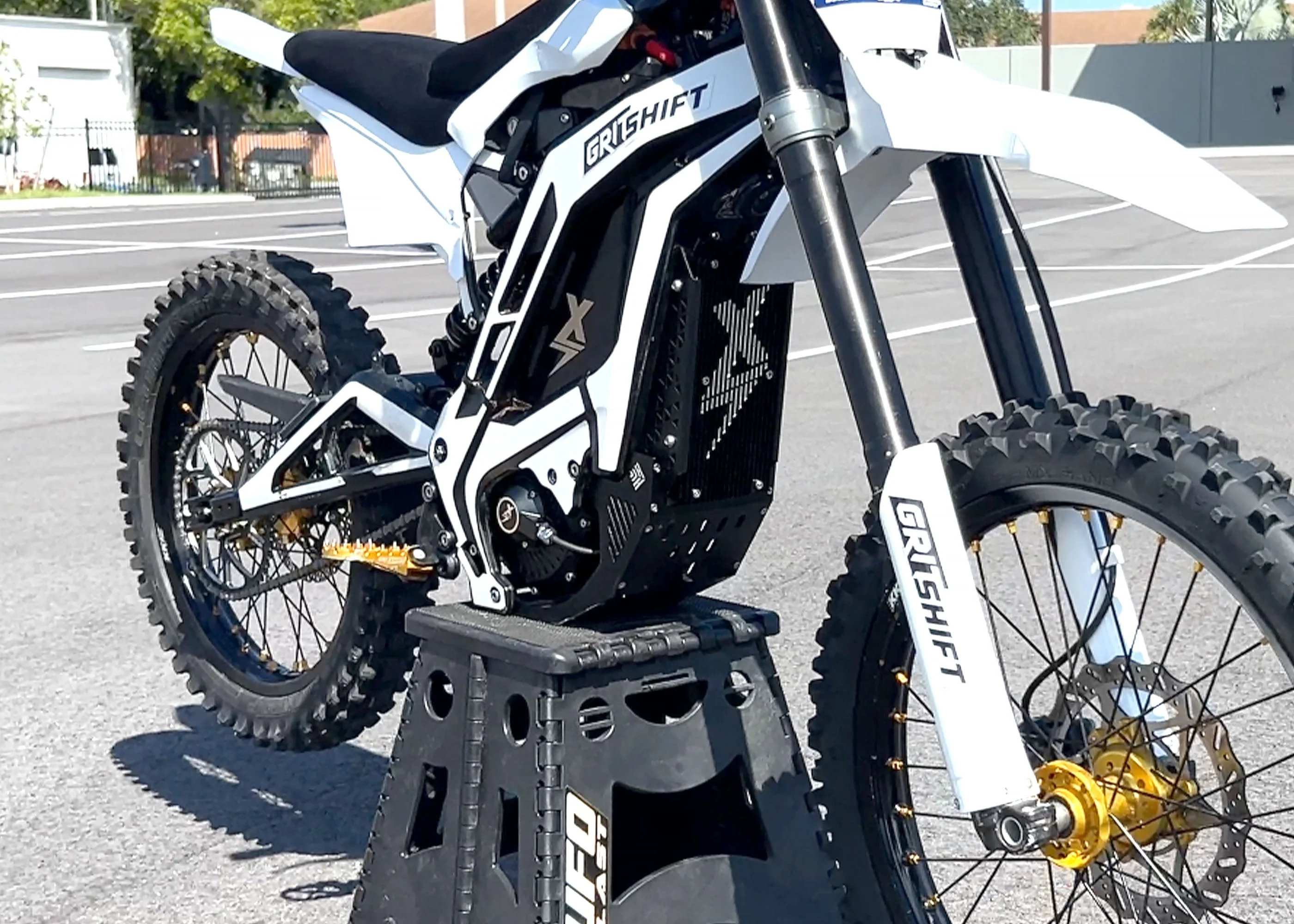

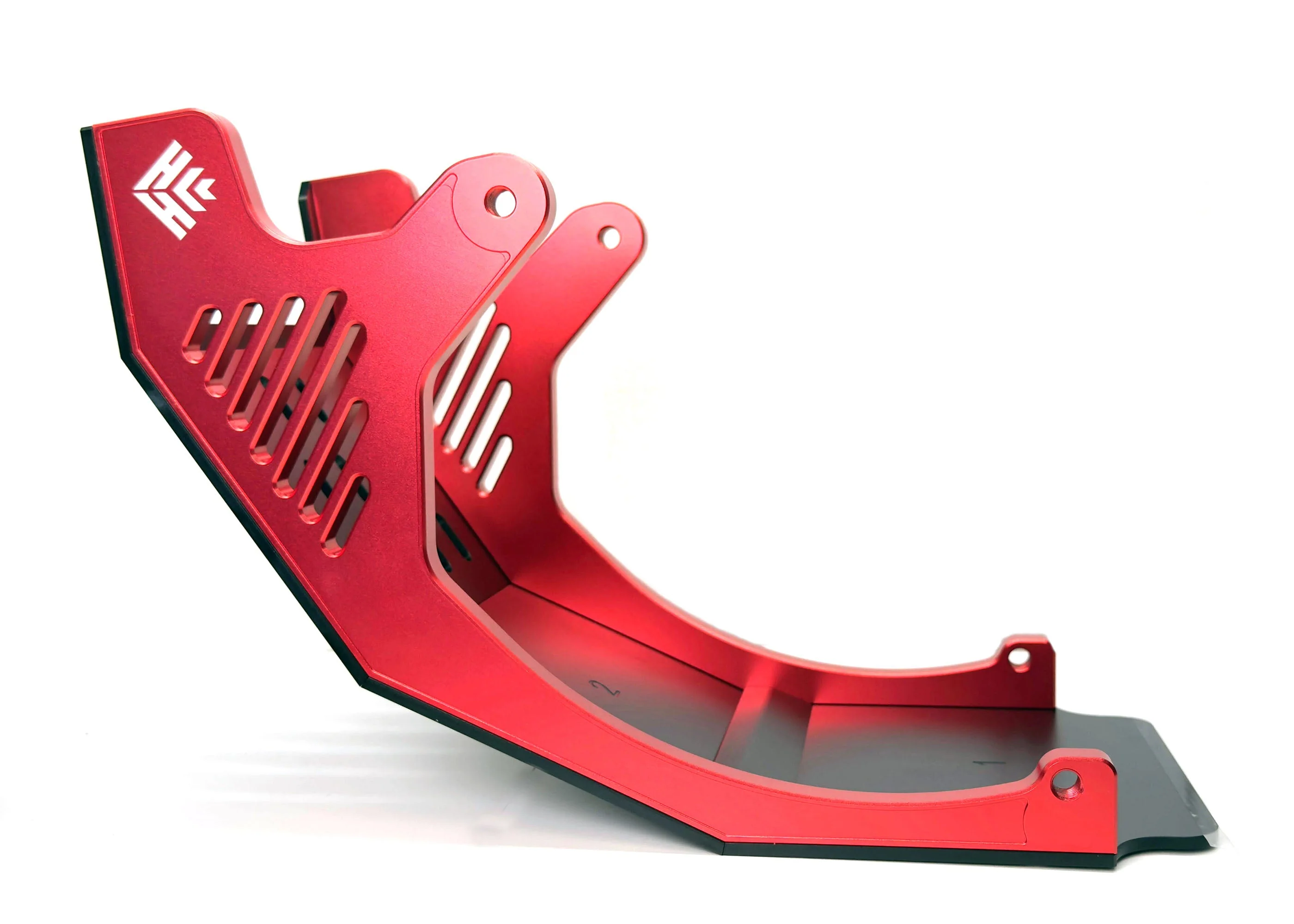

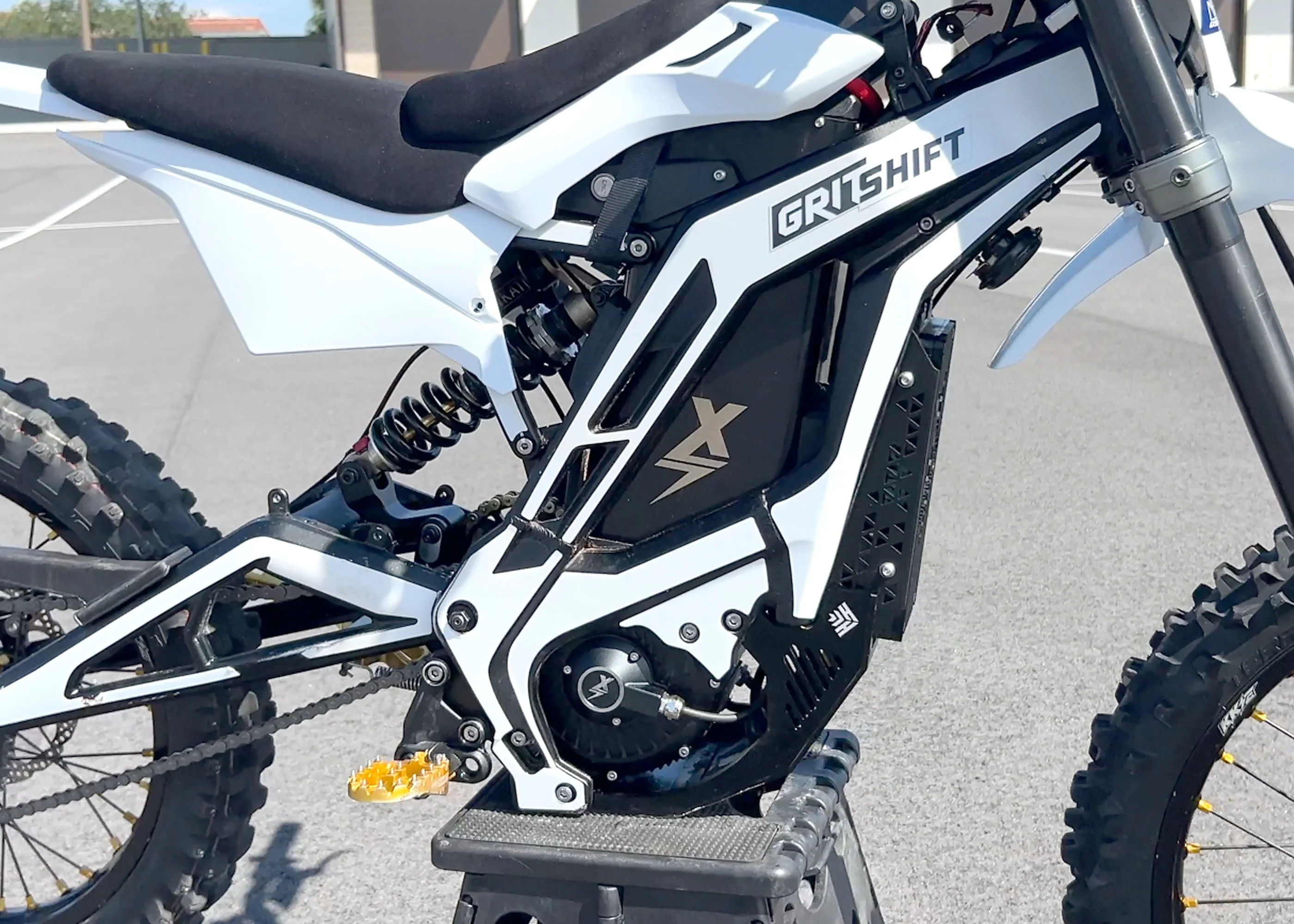

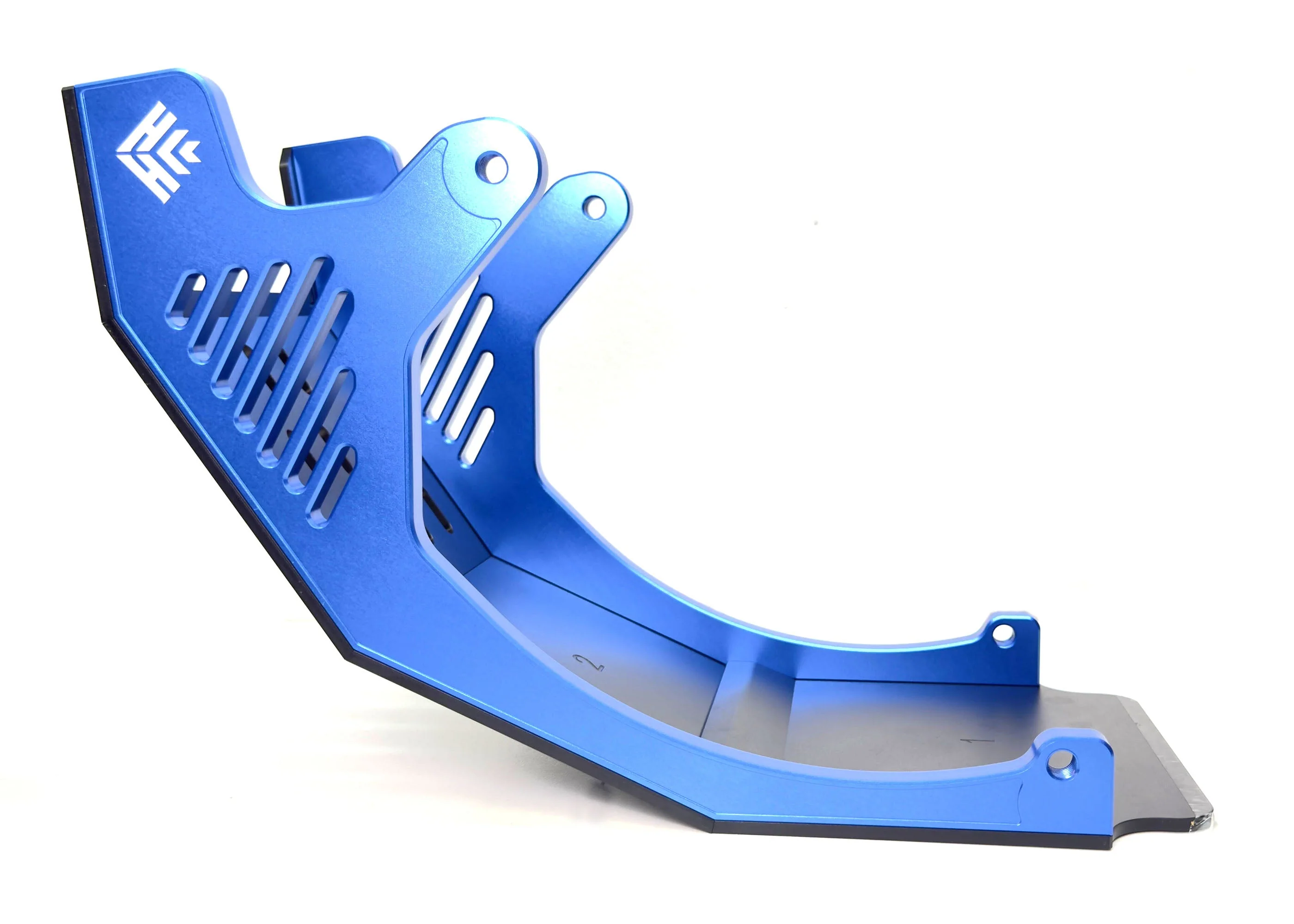

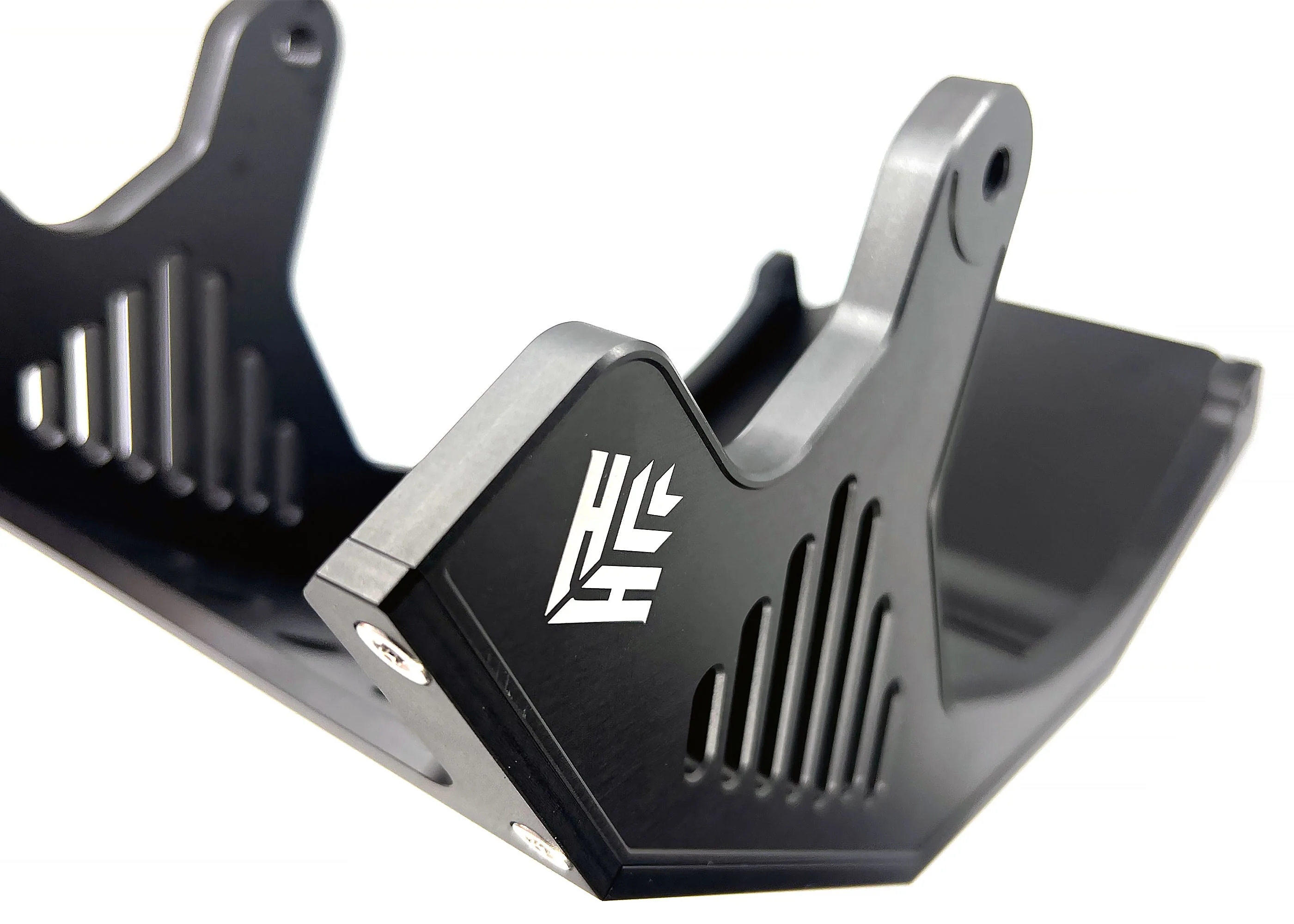

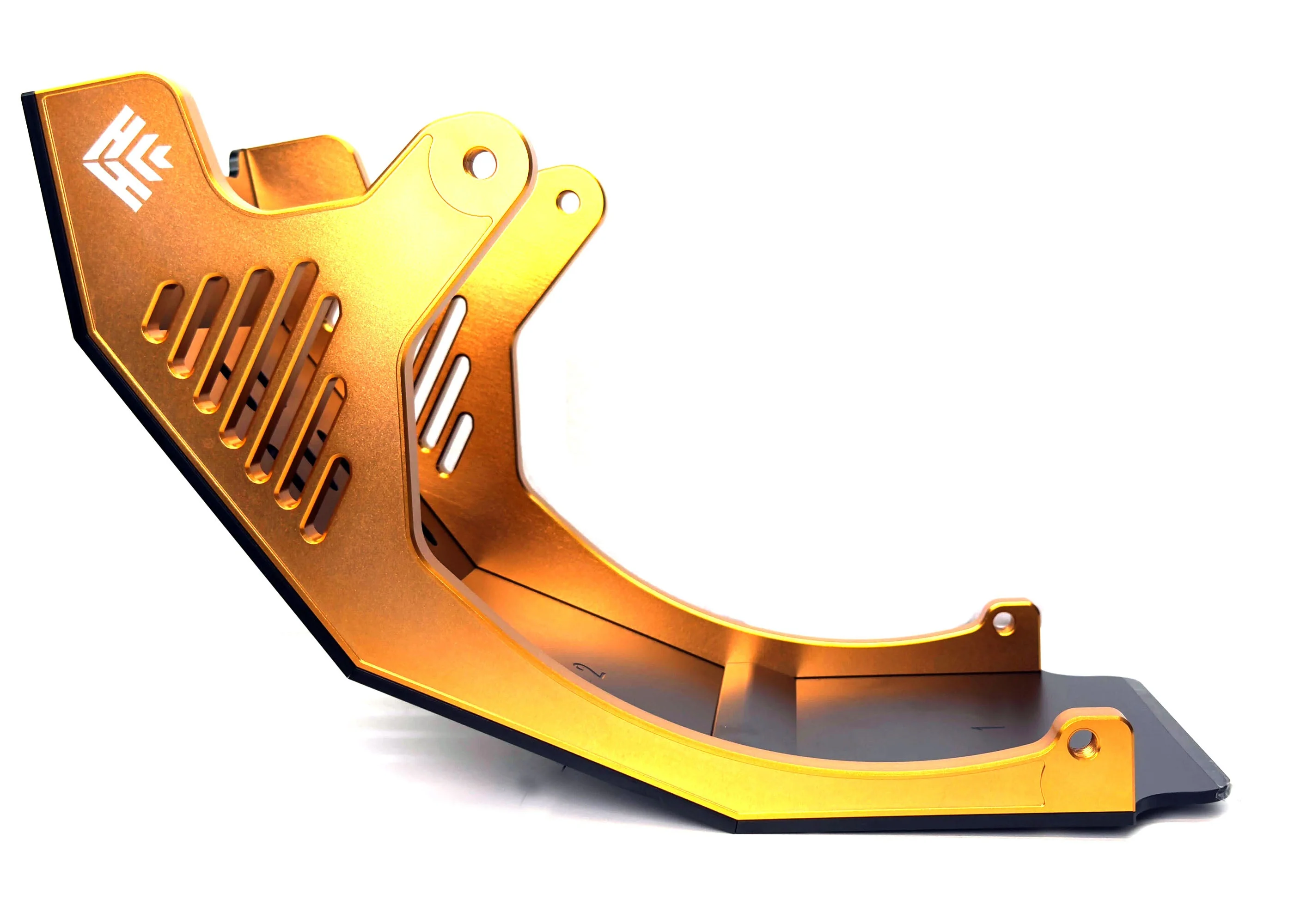

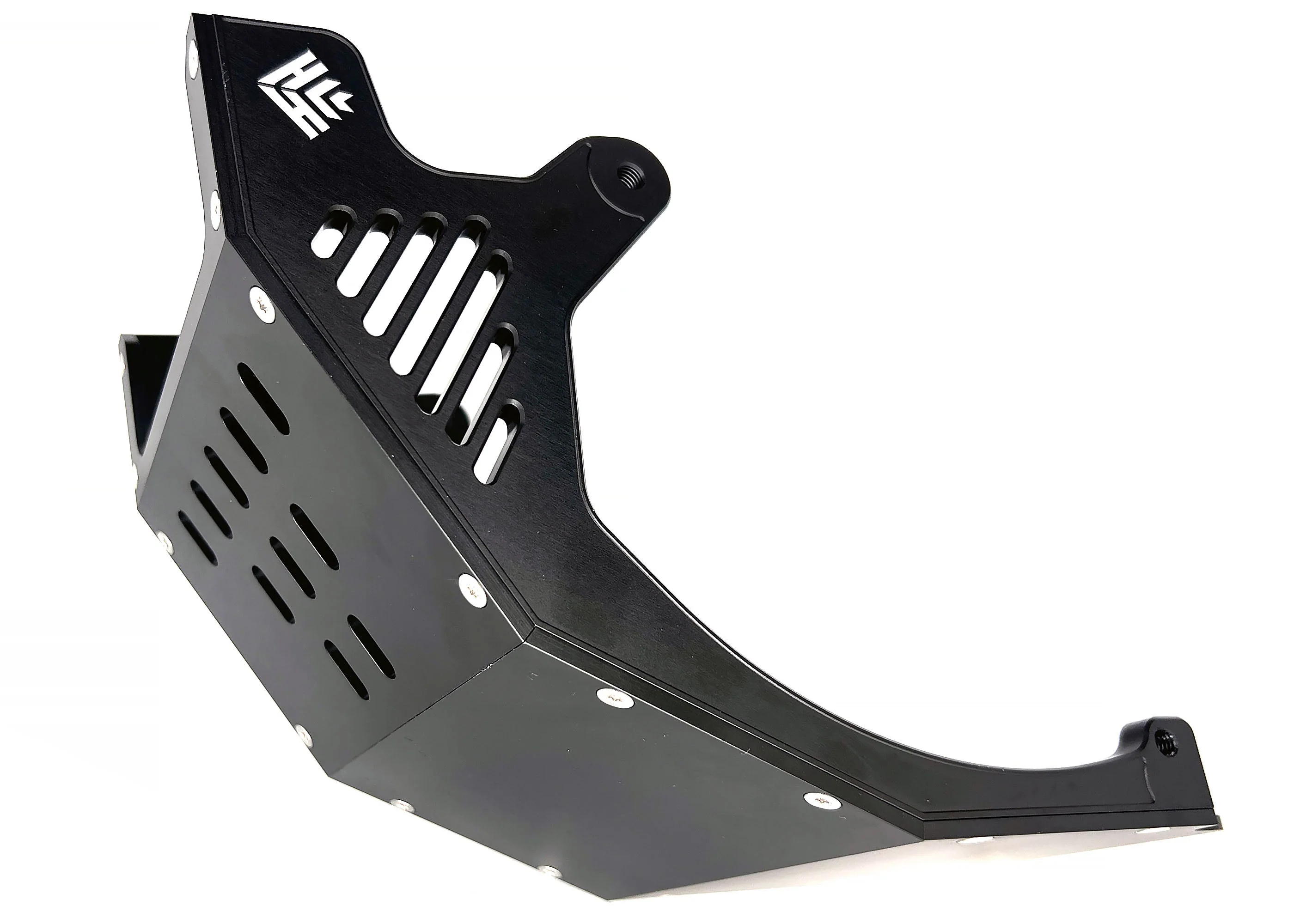

The Heavy Hitter E-Ride Skid Plate is a 7075-T6 billet aluminum skid plate built specifically for the E Ride Pro platform. Designed to protect the motor, controller, and phase wires from rocks, logs, and hard impacts on the trail. TKO Hard Enduro tested and GritShift approved. Lifetime warranty on side rails.
Fitment:
- E Ride Pro S /Â SS / 2.0 / 3.0 / SR
Download Tech Sheet (Assembly & Torque Specs)
NOTE: Lifetime warranty on side rails only if they ever bend, they will be replaced for free. Bash plates are replaceable and available upon request.

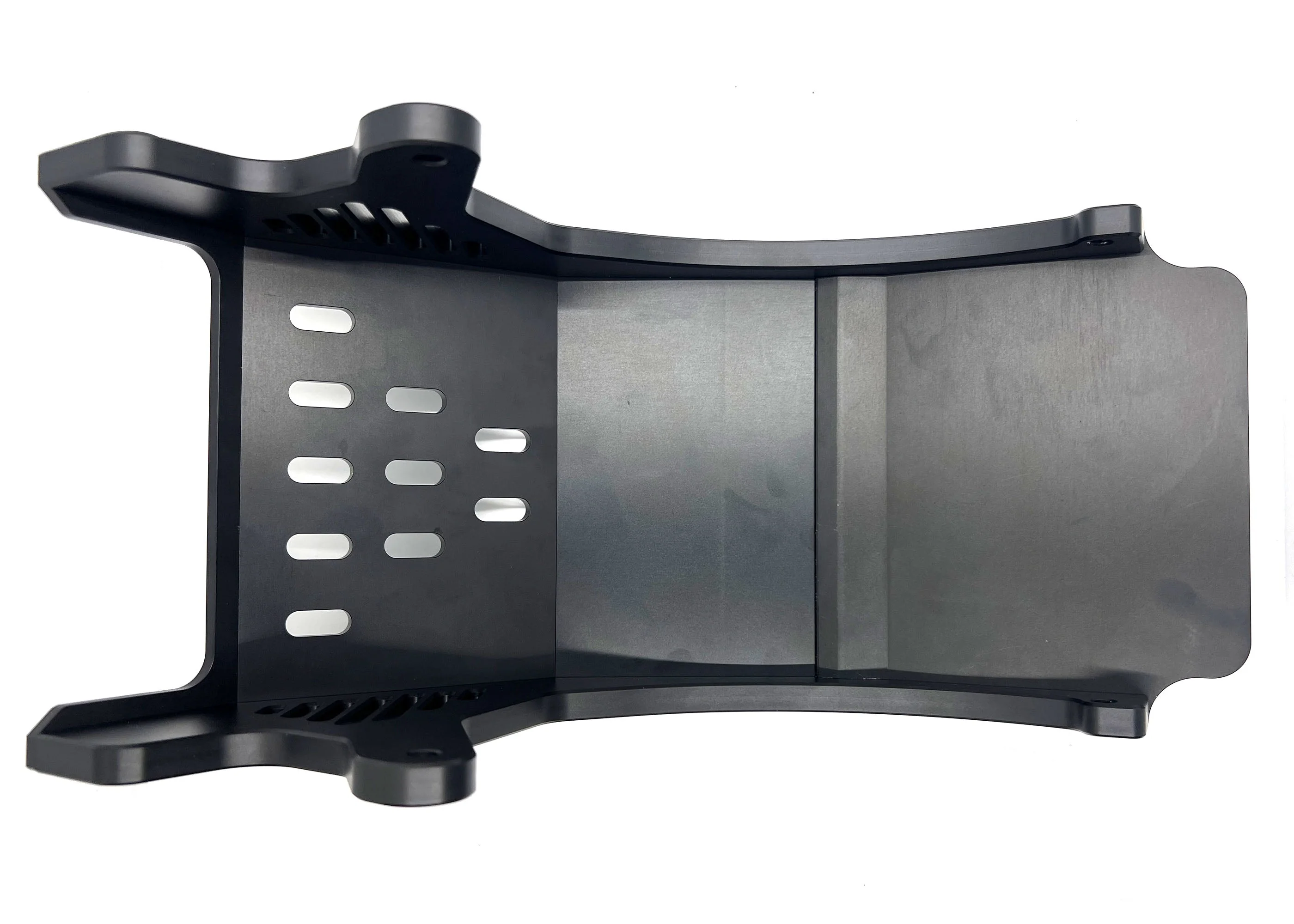

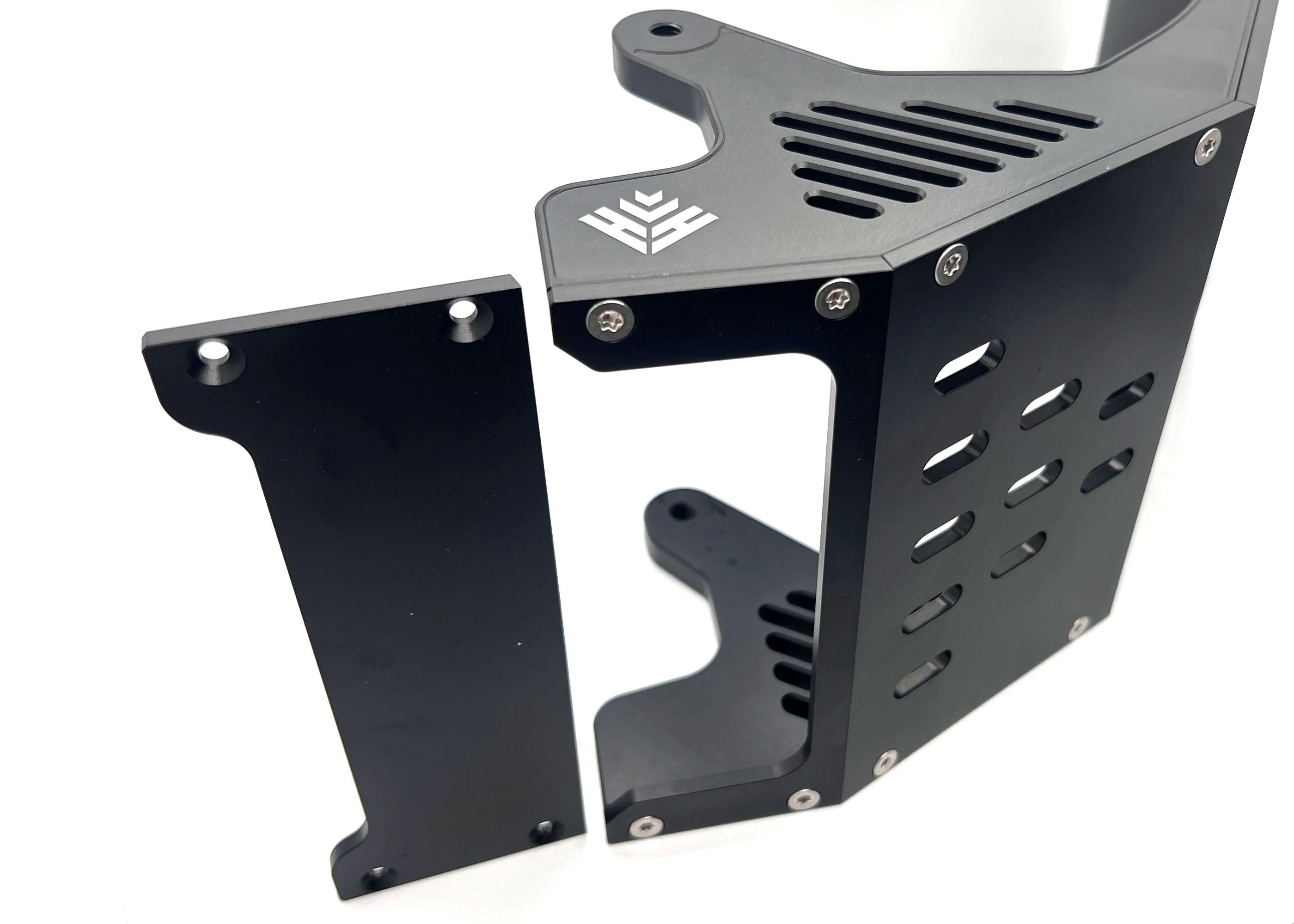

Weighs 3 lbs. 10mm bash plate tested to withstand over 6,000 lbs of impact force. Optimized bash plate angles reduce slide resistance on rocks and logs aluminum slides significantly easier than plastic since objects don’t embed on impact. Dual front bash plates included for a tight fit around OEM or aftermarket controllers, protecting phase wires from sticks and rocks. Strategic ventilation slats keep your motor cool while maintaining full protection. Each section is easily removable for routine maintenance. Replaceable bash plate swaps in minutes. No flex like plastic options that can still contact the motor and break motor mounts or housings.
Installation: blue medium thread locker on all hardware. Mounting bolts are T20 Torx. Recommended torque: 2.6 Nm / 1.92 ft-lb / 23 in-lb.
Original: $252.39
-65%$252.39
$88.34More Images
